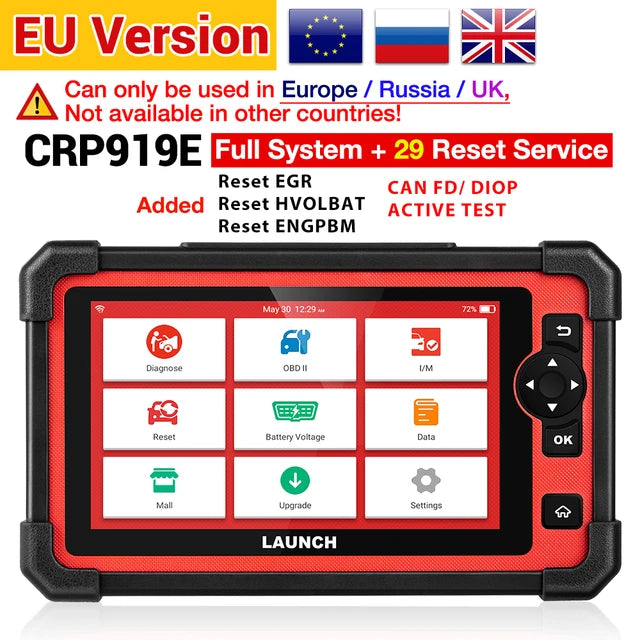

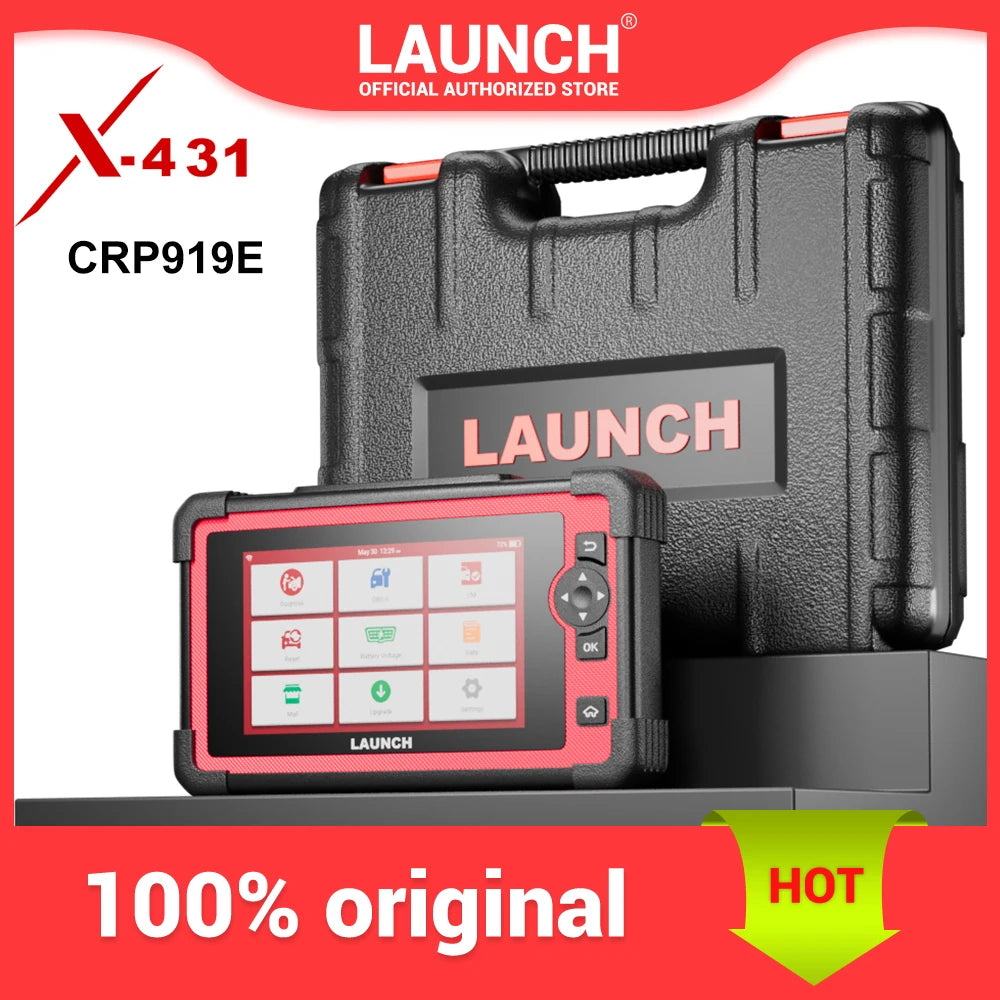

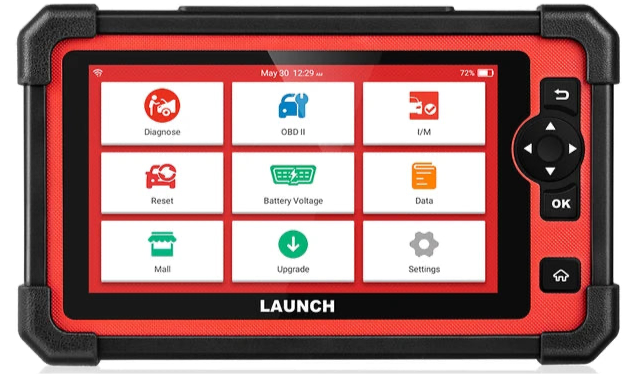

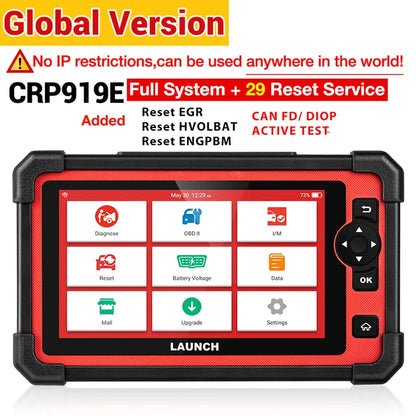

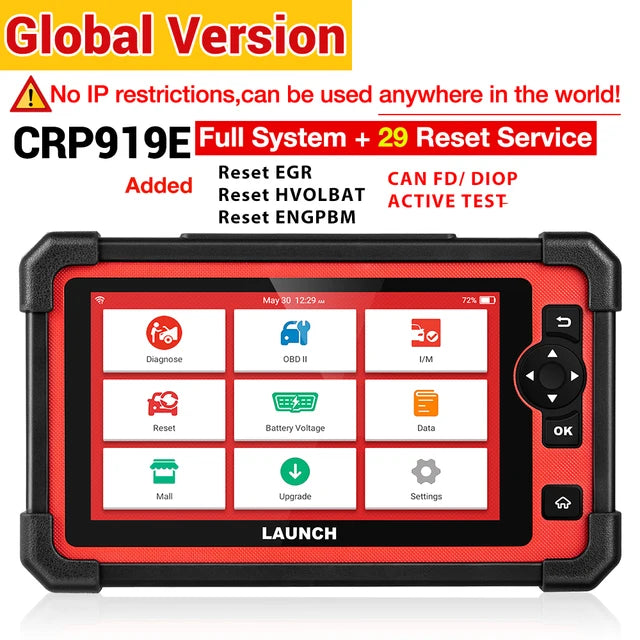

LAUNCH X431 CRP919E Elite OBD2 Scanner Bidirectional Tool 35+ Service, ECU Coding, All System Diagnosis

LAUNCH SCANNER CRP919E, 2024 NEW RELEASED SCAN TOOL

This CRP919E OBD2 Scanner supports All systems Diagnoses, All OBD-II Functions,35+ Reset Functions, Bidirectional Control, CANFD & DOIP, F.C.A Autoauth, ECU Coding, PMI Function(Programmable Module Installation), ECU Configurations, Camera Function,Support TPMS & BST360 Extension Module, Remote Assistance,2 Years Update Included!!! Note: Launch CRP919E is the upgraded version of crp909e/D7/NT809/V6/M*808.And the functions is totally the same with X431 V/PRO 5.0.

1.Newer Operating system: Based on Android 10.0 system, it adopts 2.0Ghz 4-core high-efficiency processor,3G/32G Memory(64GB Extended)ROM large storage, 6100mAh rechargeable battery (up to 20 hours or more of battery life) to avoid frequent charging, which runs faster, more stably.

2.Fast & Stable 2.4&5 GHz Dual WIFI: Much faster than traditional BT connection in transmission rate, diagnostic.

3.Type A & Type C Connection: It makes charging more faster and easy, you can charge it with your phone charger without worrying about plugging it in a wrong way.

4.Work out of Box: Optimized newest Software version. No need to upgrade to get new added functions such as bi-directional control, Digital Inspection, special functions and FCA AutoAuth. Touch screen and Keyboard button, make the diagnoses process more easy.

Conclusion: With this upgrade, LAUNCH CRP919E has better hardware configurations, wider vehicle coverage, and excellent operation performance than others. It solves the common problems of the old CRP909E, such as operation delay, slow response, and network instability. Not only does it provide a more intuitive navigation interface, but it also runs and responds up to 5 times faster.

1.Bi-directional Control: Upgrade the software version to make CRP919E bidirectional scanner to troubleshoot more problems in easy ways.

2.ECU Coding: Solve more ECU-related issues, personalization, modification, retrofitting, etc.

3.All Systems Diagnoses: It can support full system scan with full obd2 modes to do active test,read/erase code etc.

4.35+ Reset Functions: Actually 300+ resets in system to meet increasing repair needs.

5.CANFD&DOIP: Support new cars even after 2023-2024,while most scanners can not support

6.Expansion Modules:It can support Battery Tester (Work with BST360) and TPMS(Work with X431 TSGUN)（They are not included in the package,but we have).

7.2 Years Update:CRP919E supports updates for 2 years worthy for 300, and even after the update expires, the latest version before the expiration can still be used normally, and will not affect normal use.

Our 2024 New Launch CRP919E OBD2 scanner is much better than the M*808S,for example:

1.The Big Advantages of USB-C Charging Port: The CRP919E makes charging more faster and easy, you can charge it with your phone charger without worrying about plugging it in the wrong way.While the M*808S scanner still uses the old slower USB-B port.

2.A Larger Battery Capacity. CRP919E is 6100 mAh battery capacity and M*808S is 5000 mAh.Ours adopts 2.0Ghz 4-core high-efficiency processor, 4GB RAM+64GB ROM large storage, and is equipped with a high-endurance battery, which runs faster, more stably and lasts longer.

3. CRP919E Supports ECU Coding Function,while M*808S doesn't. Ours allows you to Reset the adaptive data, Match the replaced ECUs, Unfold the hidden functions,Customize OE-settings(Retrofit/Modification) etc

4.Three More Reset Functions: ENGPBM RESET,HVOLBAT RESET,GEARBOX RESET. CRP919E has 35 reset function but M*808S only has 28 reset function. And there are actually 300+ reset services in system.

5.A Wider Range of Vehicles Coverage,Especially for New Cars. CRP919E scan tool supports CAN FD and DOIP new protocols but M*808S doesn't. So CRP919e is compatible with GM vehicles after 2020 and compatible with BMW (F&G chassis), Volvo models (2018 later), Land Rover & Jaguar models (2017 later) etc

6. CRP919E Supports Buttons and High Sensitive Touchscreen 2-in-1. When you are in a greasy garage and wearing mechanic gloves,you will much easier to diagnose by pressing the buttons. But M*808S only support touchscreen

7.One More Year Free Update.CRP919E supports updates for 2 years, However, m*808S only supports 1-year updates.

8. More Advantages in Bidirectional Function in Specific Vehicles,such as fit for BM-W, BENZ, FORD etc.

9. Support 5 Methods for Vehicle Identification: 1. Auto VIN and Auto Scan;2. Manual VIN Input;3. Automatic Selection;4. Manual Selection;5.Camera Scan

10. Add Massive Online Repair Information to help diyers when diagnostic,including Operating Skills, DTC Help, Automotive Technology Handbook, Repair Cases and How-to Videos, TPMS Database, etc.

LAUNCH SCANNER CRP919E SAME AS SNAP-ON SCANNERS , POWERFUL OE FULL SYSTEM SCAN TOOL WITH ECU CODING

The LAUNCH CRP919E auto code reader is a cost-effective automotive scanner, that offers OE-level diagnoses on all available electronic systems, ECM, ABS, SRS, TCM, EPB, TPMS, SAS, A/C, BMS, ESP systems, etc. which can read/clear codes, data stream, read control module information,get freeze frame data, graphic & text live data, active test and ecu coding for accurate efficient solution.

Support 5 Methods for Vehicle Identification:

1. Auto VIN and Auto Scan;2. Manual VIN Input;3. Automatic Selection;4. Manual Selection;5.Camera Scan.

Supports OBD2 Full Functions:

It supports OBD ll functions to help you turn off the annoying instrument fault indicator and also can read/clear codes, O2 sensor test, I/M readiness, On-board monitor test, read data stream, display freeze frame data, EVAP system test, retrieve vehicle information (VIN, calibration ID, calibration verification numbers)

Supports Full System Diagnostics:

Engines/Auto Transmission/Airbags/ABS/Cruise Control/Instruments/Self Leveling Suspension systems Seats / Doors / Gateway / Steering Angle / Air Suspension / Body Systems / Electronic Power Steering & Motor Assisted / Power Steering / Tyre Pressure / Rain Sensors / 4WD System Stabilizer/Intelligent Parking Assist/Door Motors/Audio systems/Air Conditioning/Tiptronic/Soft Top/Headlamp Leveling/Central Locking/Automatic Clutch/DP.F Reset Electric Windows / Plip Programming / Heated Rear Window / Xenon Headlights / Wash Wipe / Fuel Burning Heater / Transfer Box / Seat Memory / Oil Reset / Sliding Doors / Electronic Throttle Navigation System / Rollover Sensor / Cruise Control / Multi Function Steering Wheel / Aux Heating / Electronic Parking Brake / Clutch Electronics ... and more.

ECU Coding:

Recode Changed Modules,Optimize Vehicle Performance,Re-Flash Hidden Functions,Renew ECUs Coordination,Reprogram Adaptive Data,Improve Fuel Efficiency,Reduce Power Loss,Improve the Durability of Mechanical Parts. Compatible with BMW, Audi, VW, Skoda, etc.But Note:1. Online Coding & Online Programming is not available.2. Coding function varies by vehicle model.

Matching:

Rematch the repaired or changed component control modules.

Personalize:

Activating daytime running lights,activating the acoustic warning signal,changing the brightness of the dashboard,adjusting interior lights,automatically activating the rear-view camera,adjusting the level of the side mirrors etc.

Disable some unneeded functions:

such as deactivating injector buzz sounds,deactivating the auto start-stop,disabling seat-belt warning and more;

Programmable Module Installation:

2024 LAUNCH CRP919E automotive tools mechanics has the PMI Function allows you to copy the data from the original module and install it to the new unit to finish the module replacement.Compatible with B-MW, F-ord, M-azda, A-udi, S-koda, etc.

35+ RESET FUNCTIONS:

The LAUNCH CRP919E code reader car diagnostic tool with reset is one of popular OBD2 automotive diagnostic scanners in the market, The following 35+ special functions are frequently-used car services which can meet your more requirements and cover more car models.

6 Hot Repair Functions Explanations:

Oil Reset Service (for 66 brands)Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

ABS Bleeding (for 48 brands)- Air will get inside the brake system after replace components such as calipers, wheel cylinders. The air has to be removed by bleeding the brakes to keep a firm brake pedal. (Note: This function only support the vehicles that can do AUTO bleeding.)

EPB Electronic Park Brake Reset(for 58 brands)It is important in the maintenance of electronic braking system's safety and efficiency.

BAT battery service (for 35 brands)Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

D.P.F Diesel Particulate Filter Reset(for 62 brands) Specially works for Diesel Particulate Filter system with DP.F regeneration, DP.F component replacement teach-in and DP.F teach-in after replacing the engine control unit.

TPMS Tire Pressure Monitoring System Reset (for 88 brands) Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

Replace Airbag ECU (for 20 brands)- it can replace Airbag ECU module which helps to match the new airbag information with the ECU after you repaired the airbag and let it know the fault has been repaired. (Note: It will not support the airbag crash data cleaning. )

Crank Sensor/Crankshaft/Camshaft Relearn: It needs to be done after the engine has replaced the ECU and disassembled or replaced the timing belt assembly and crankshaft position sensor. Wide Coverage: GMC, Benz, Chrysler, Jeep, Dodge,Buick,Cadillac,Chevrolet, Honda, ISUZU, ACURA, VOLVO,Opel and more(Keep Growing in the Future!!!)

CRP919E's reset function is the same with Launch X431 V,so except for the commonly 35 Reset functions in the "Reset" menu, you will Get 100+ Reset Functions if you diagnose by the car brands.( "Diagnose" > select vehicle brand > Automatically Search > System Selection>Select System >Special Function. ) (Note: the special functions that can be performed may vary by car model.)

You can quick access to the vehicle systems search for various advanced functions for specific vehicle models, such as F-uel Alcohol Composition Reset, F-uel Injector Balance, Crankshaft Position Sensors Relearn,Idle Learn, Zero Point Calibration, Transmission Service Fast Relearn,CKP Learn, HVAC Actuator Calibration Test, WCS Reset, VIN Registration(Write), SWS Initialization, QuickLearn, Injector Fuel Rate Programming, Throttle Position Reset, etc. More Can be Done After Maintenance / Reset or Component Replacement: initial adaptation, Auto-learning, relearn, auto detection.

“Mall” module in the app Allows to Buy More Features.

FULL BI-DIRECTIONAL CONTROL/ACTIVE TEST

The LAUNCH CRP919E car diagnostic tool features with Full Bi-directional Control is newly released which is advantageous among basic code readers. This can drive solenoids and actuators for active testing, sending commands to the system/component to test its operating status without using the vehicle controls, let you quickly understand whether a specific system, component, or subsystem is operating normally, it enables to accurately and pinpoint issues and greatly improve diagnostic efficiency.

Commonly-Used Active Tests including:

- EVAP Vent / Purge Solenoid;

- Fuel Injector Test;

- Cycling A/C Clutch Relay;

- Cycling ABS Motor Pump;

- Cooling Fan Test;

- Window/Light/Door Lock Actuators/Headlamp Test/Sunroof/Operate mirrors/Turn on the sound horn;

And also can perform other actuation test functions including Modulate the throttle,Turn Off ACC Lane Keeping Assist System (LKAS) ; Turn ON/OFF Front and Rear side ACM Solenoid, Left clutch electromagnetic coil test,Acceleration Device Test,Oil Pressure Control Test DYNAMIC camera aiming,Brake Vacuum Pump, Inlet and Outlet Valve tests, Open Brakes tests, Parking Brake Motors, Wheel Speed Sensor Supply, PARKING BRAKE tests, etc.

Note: *Please “Upgrade Software” to get “active test”. *Actuation test functions vary by the vehicle system.

SUPPORT NEW CANFD/DOIP DIAGNOSTIC PROTOCOLS

LAUNCH X431 CRP919E Car Diagnostic Tablet is an evolutionary Android smart solution for 12V passenger car,light duty,pickup truck diagnosis & maintenance. Covering more than 150+ car brands(1996-2024) and 200000+ models.It's design for car repair garage,car beauty service parlors, auto mechanic and DIY car owners auto scanner.

2024 New Function CANFD Protocols and DOIP Protocols:

Compatible with CANFD protocol, Compatible with GM models (2020 and later).DOIP makes LAUNCH CRP919E save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications. Compatible with BMW (F&G chassis), Volvo models (2018 later), Land Rover & Jaguar models (2017 later).With the strong CANFD/DOIP Protocols, covering 2024 new vehicle models (No Need to CAN FD/DOIP Adapter,VERY EASY TO USE).

2024 New Function F.C.A AutoAuth Access Function:

With the newly update on Launch scan tool CRP919E, you now have access to the security gateway module on 2017 and newer Fiat Chrysler Jeep Dodge vehicles.(Note:F.C.A autoauth requires a paid F.C.A account to log in directly. If the login fails, you can choose to connect to 12+8 F.C.A adapter to solve your problem.)

Compatible with a Wide Range of Vehicles:

EXTRA FEATURES：

The Launch CRP919E OBD2 Scanner has the extra features which making the diagnostic more smarter and intuitive:

1. IMMO Function: LAUNCH CRP919E launch scan tool has the anti theft function which is similar to x431 V. It can add a new key and disable the lost car keys,but only covers some 3.5th gen. Volkswagen, Audi, Skoda, Seat, and some Asian cars.

2. 8 in 1 Live Data Stream: The scan tool crp919e launch scan tool allows maximum of 8 live data streams to be merged in one graph now.It can show you live sensors data including the change of Accelerator Pedal Position Sensor, Throttle valve position,Generator load signal,Fuel Tank Pressure, Engine RPM, Long & Short Fuel Trim,Intake Air Temperature and so on and provides data graphing for intuitive diagnostics and monitoring your vehicle performance, help customers to better analyze the abnormal parameter.

3. Data Recording Functionality is convenient, customer can record the live data stream for up to 8, simultaneous, PID's. Once these have been recorded they can be played back in text format and/or graph format.

4. Data Playback supports two graphs (independent) or 8 PID's graphed (combined). Playback timeline can be scrolled, paused, viewed, etc. There's quite a bit of power in the graphing.

5. One Click to Generate Report: Launch crp919e obd2 scanner support auto generate and store vehicle diagnostic report which can let your mechanic know how to do vehicle inspection and maintenance.

6. Print and Share Report: The diagnostic report can help you save time to analyze the problem, it is very great for repair shop , mechanics can print out the vehicle report for customer.The diagnostic report can be shared.

7. Displays Error Codes With Explanations:Click on the “Code Search” icon to dig more. It will switch to Google to show you more analysis of trouble codes, reasons why such faults occur, and even YouTube links.

8. DTC Help & Online DTC Google Search: There are 2 ways to help you to read DTC:DTC HELP & CODE SEARCH. For Example: 1. Select Health Report>Tap Enter>Check the information and tap OK>Select Read DTC>You can select "Help" or select "Code Search"; 2. Select System Selection>Select the module you want to diagnose>Check the information and tap OK>Select Read DTC>>You can select Help or select Code Search. Just one click to search the DTC definition when you see the data or report,if it is not enough, You can click“Google” for search more online help & tips.

9.Online feed-back: Launch crp919e provides you with a Online Feed-back function to share any problems you encounter in the process of diagnosis. You will get help and suggestions soon if there has any problems , thus offering you a higher quality user experience.

10.Support 5 methods for Vehicle Identification: 1. Auto VIN and Auto Scan;2. Manual VIN Input;3. Automatic Selection;4. Manual Selection;5.Camera Scan.

11.Support Massive Online Repair Information: Operating Skills, DTC Help, Automotive Technology Handbook, Repair Cases and How-to Videos, TPMS Database, etc.

MULTI LANGUAGES TO SUPPORT YOUR NEED

The 2024 CRP919E with 6 Newly Added Strong Modules: PMI Functions, Battery Tester (BST360),TPMS(X431 TSGUN),Battery Voltage Monitor Function,Camera Function,Remote Assistance.

1. PMI Functions: To allow you to copy the data from the original module and install it to the new unit to finish the module replacement. Compatible with BMW, Ford, Mazda, Audi, Skoda, etc.

2. Battery Tester (Work with BST360): To view the health status of the vehicle's battery and electrical system. Allow you to fix battery detection faster and easier.（BST360 are not included in the package,,but we have).

3. TPMS(Work with X431 TSGUN): To activate all 315/433MHz sensors, relearn & program LAUNCH sensors（X431 TSGUN are not included in the package,but we have).

4. Battery Voltage Monitor Functions: You can detect the battery's real time voltage in graphics to ensure the system is operating in good condition. To remind you to change or replace the battery when it is below the normal value in order to avoid the possible danger.

5. Camera Function: You can take photo of your vehicle situation anytime, anywhere.

6. Remote Assistance: You can use TeamViewer or others very quickly.
